Q-switch 1064nm 532nm 1320nm ND Yag Laser Machine for Tattoo Removal Scar Acne Removal Eyebrow Pigment Removal

$1,500.00 $1,200.00

Description


Working Principle:
Laser technology has been greatly improved with the ability to treat melanocytic lesions and tattoos with the
rapidly pulsed Q-switch neodymium: yttrium-aluminium garnet (Nd: YAG) laser. The treatment of pigmented
lesions and tattoos is based on principle of selected photothermolysis.The Q-switched ND: YAG laser delivers
light of specific wavelengths with high energy which are absorbed by the pigment in the tattoo and result in a
shockwave. The shockwave shatters the pigment particles, releasing them from their encapsulation and
breakingthem into fragments small enough for removal by the body.
These tiny particles are then eliminated by the body. Since this specific wavelength can only be absorbed by
pigment particles, no injury to skin and normal tissues will occur.
Applications:
– All colors of tattoos removal,like blue, red, coffee, brown and etc.
– To remove pigmentation formed by pathological changes of pigment skin and mixed color, dermis spot, fleck,
black nevus, age pigment,birthmark and Nevus of Ota;
– Removing all kinds of embroider eyebrow, embroider lip, soak lip, embroider eye line and lip line.
 Advantages:
1.Faster tatoo removal:The output energy can reach 2000mj, which appears faster and better treatment effect.
2.Longer lifetime & longer working:with special temperature control system,the machinecan keep working for longer time and the lifetime is longer than most ones in the market.
3.All key parts,like power supplies, the mainboard, the capacitance and the controller,are the best ones imported from Germany and USA,which ensures tattoo removal machine`s long time using-lift. And it assures our tattoo removal machine behavior more stabilized and the works be more reliable.
4.Aiming light: net imports of infrared indicator to spot more accurate treatment has greatly enhanced point utilization, besides, it also ensures the accuracy of long treatment and easy for the operator to handle.
5.We offer original lamps parts of our tattoo removal machine which are made by the bestChinese optical manufacturers 11th Institute, theb est organization to provide the lamps. You can change the lamps by yourself, pretty easy to operate. Our lamps can operate for 100~120 thousand shots.

6.The Plug head stainless steel, quite durable.532nm head is used for the treatment of the brown and red pigment. 1064nm head can be used for the treatment of the black and the blue pigment.
Technical Specifications:
​​​Wavelength:1064nm&532nm&1320nm
​​Laser Type:​q-switched nd yag laser
​​Display:4.3 inches touch screen
​Energy:10-2000mj
​​Repetition Rate:1-10hz
​​Pulse Width<10ns
​​Out Power:500W
Cooling condition:​Self-contained, closed water cycle
​Voltage input:​100-240VAC,50/60Hz
​​Packing size:​45×60×51cm
​​Weight:​N.W:10kg   G.W:25KG

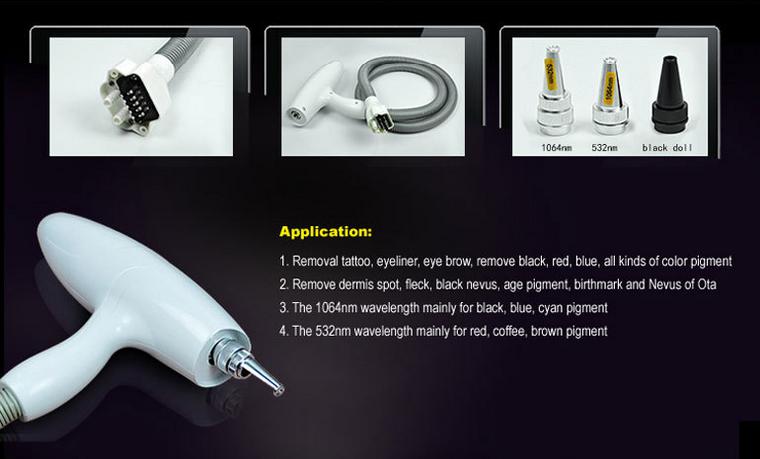

Parts:
The machine includes a yag laser handpiece, a 1064nm tip head probe, a 1320nm black toll tip head probe and a
532nm one, as well as some other parts.
532nm laser probe:Square,emit green laser light,mainly cure the red,green,brown colored tattoos and pigments.
1064nm laser probe:Circular,emit white laser light,mainly cure the black,blue colored tattoos and pigments.
1320nm probe: shrink pores removal, poblackhead removal, skin tightening and whitening, skin rejuvenation, wrinkle removal.

Treatment:

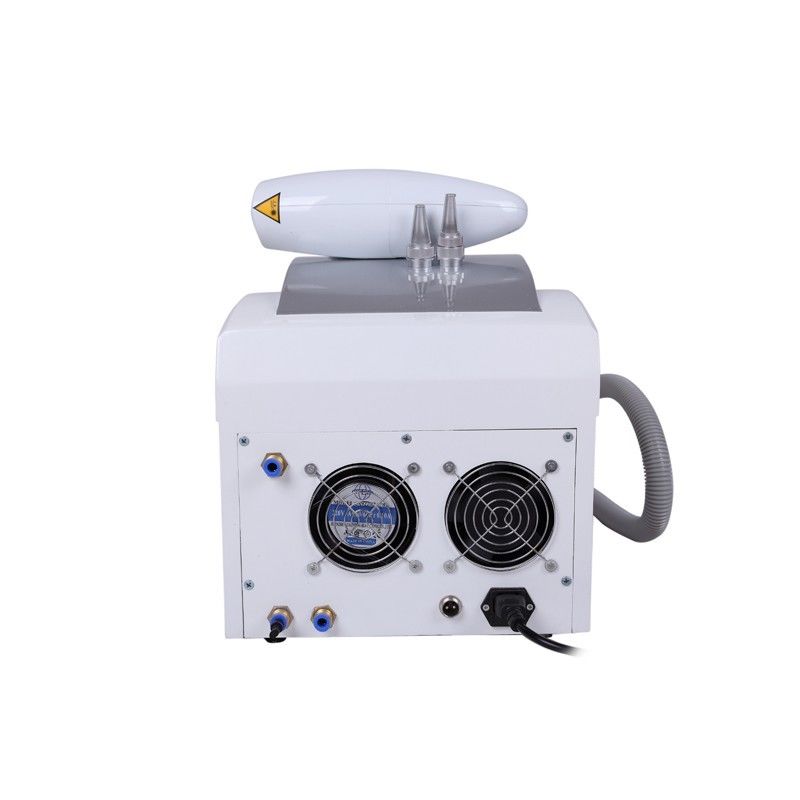

More details show of the machine:






Operation skills for laser tattoo removal system:
Items
times
interval
Notice
eyebrow
1~2
30-60day
Remove eyebrow hair and protect eyeballs
eyelid
1~3
45-60day
Remove eyebrow hair and protect eyeballs
lips outline
1~3
15-45day
use 532mn mirror
Body tattoo
1~4
30-60day
Exude blood is effective
flecks ,aged spot
1~5
15-30day
Exude blood is effective
birth mark
3~7
45-90day
Exude blood is effective
