50watts 980nm diode laser system for vascular removal and lipolysis treatment

$4,500.00 $3,970.00


This is a powerful multipurpose diode laser system manufactured with the best diode laser module made in Germany. Equipped with several treatment probes, it can be used for vascular removal, lipolysis therapy, nail fungus removal, physiotherapy and etc.

Application of Spider Vein Removal Vascular Therapy
1) Vascular removal: face, arms, legs and the whole body
2) Pigment lesions treatment: speckle, age spots, sunburn,pigmentation
3) Benign proliferation: skin excrescence: Milia, hybrid nevus,intradermal nevus, flat wart, fat granule
4) Blood Clots
5) Leg Ulcers
6) Lymph edema
7) Blood Spider clearance
8) Vascular clearance ,Vascular lesions
9) Acne treatmentWorking Principle of vascular therapy:
1.980nm diode laser is the optimum absorption spectrum of Porphyrin vascularcells. Vascular cells absorb the high–energy laser of 980nm wavelength, solidification occurs, and finally dissipated.
2. To overcome the traditional laser treatment redness large area of burning the skin, professional design hand-piece, enabling the 980nm laser beam is focused onto a 0.2–0.5mm diameter range, in order to enable more focused energy to reach the target tissue, while avoiding burn the surrounding skin tissue.
3. Laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density, so that the small blood vessels are no longer exposed, at the same time, the skin’s elasticity and resistance is also significantly enhanced.
4.The Laser system based on the thermal action of the laser. The transcutaneous irradiation (with a penetration of 1 to 2mm in the tissue)causes tissue selective absorption by hemeglobin (hemoglobin is the main target of the laser).

Technical Parameter:
Input voltage 220V-50HZ/110V-60HZ 5A
power 1-30W
wavelength 980nm
frequency 1-10hz
pulse width 1-200ms
laser power 30w
Output mode fiber
TFT touch screen 8 Inch
Dimensions 40*32*32cm
gross weight

Advantage of the machine
1) No consumable parts, the machine can work 24 hours a day.
2) Treatment tip diameter is only 0.01mm, so which will not damage the epidermis.
3) The high frequency creates high energy density, which could coagulate target tissue immediately, and these   target tissues would be sloughed off within one week.
4) Only one treatment needed.
5) Portable design, easy for transport.
6) Top equipped spare

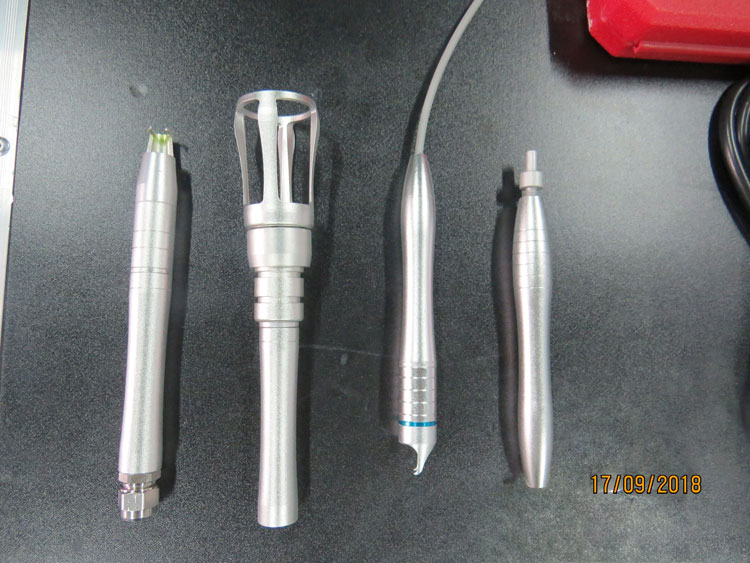

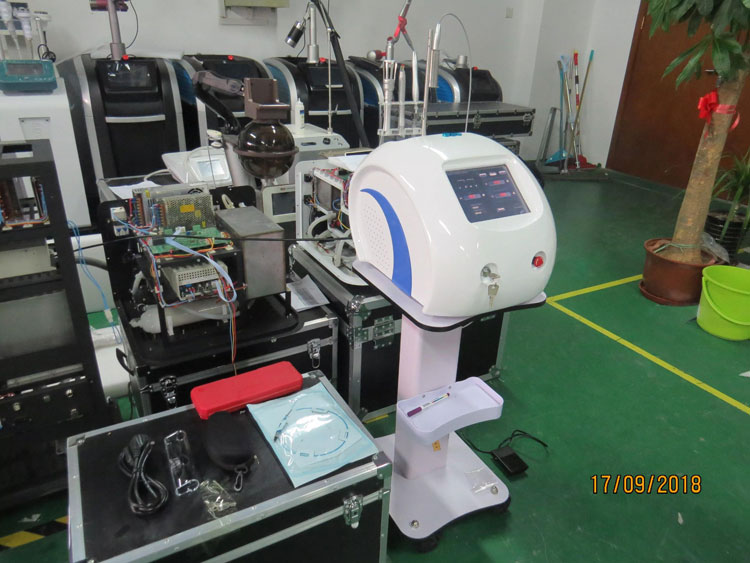

More photos of the machine:

Operation Interface:
